DMF Lighting

Today Rob from DMF Lighting visited our office to show their updated product.

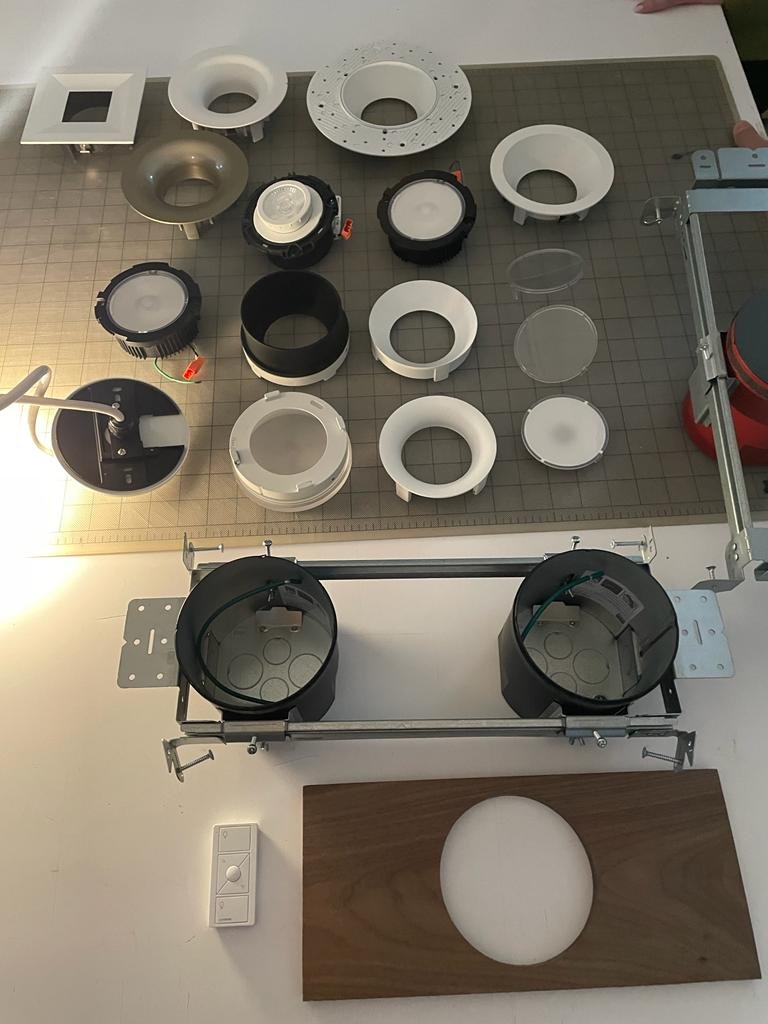

  • DRD Series, a versatile modular fixture with TRI optic and driver on board. It comes with a variety of replaceable optics and is integrated into different housings, such as their signature fire-rated housing with distinguished red finish housing, available in the low profile option (NEW). The concrete poured is also available. A spring bracket is also an option for remote mounting. Here are the available options for mix & match.

    • Standard finishes are white, black, and brown + options for custom.

    • They use Cree LED chips unless otherwise listed.

    • The fixed and adjustable downlight with shallow housing delivers 1250lm and 1000lm, respectively.

    • Housing ships in 24-48hrs while the light engine ships within 5-7 days.

  • DRD 4 with 45° tilt, 360° rotation. It’s available as wet and impact rated.

  • They now also offer a wall washer trim.

  • Cost-wise, the standard fixed downlight with Triac dimming is $120 DN, and the fire rated with 0-10V dimming is a $10 add-on.

NEW:

  • Double housing two (2) module downlight. What's unique about this fixture is the capability to shift the fixture spacing within the housing.

  • Cylinder (dual cylinder): 3" to 96" max length. Ip65 has a 4" aperture, hyperbolic trim, and an acrylic lens. This fixture is mounted on a 6" j-box and has a field cuttable cord. Available as down and up/down options.

  • They have a nice warm-dim option, using Bridgelux LED.

  • 2" aperture

  • Leadtime is 5 days to build + 5 days to ship for up to 200 fixtures that are not stocked. For qty of 200+ lead time will be 2-3 weeks
